Diamax

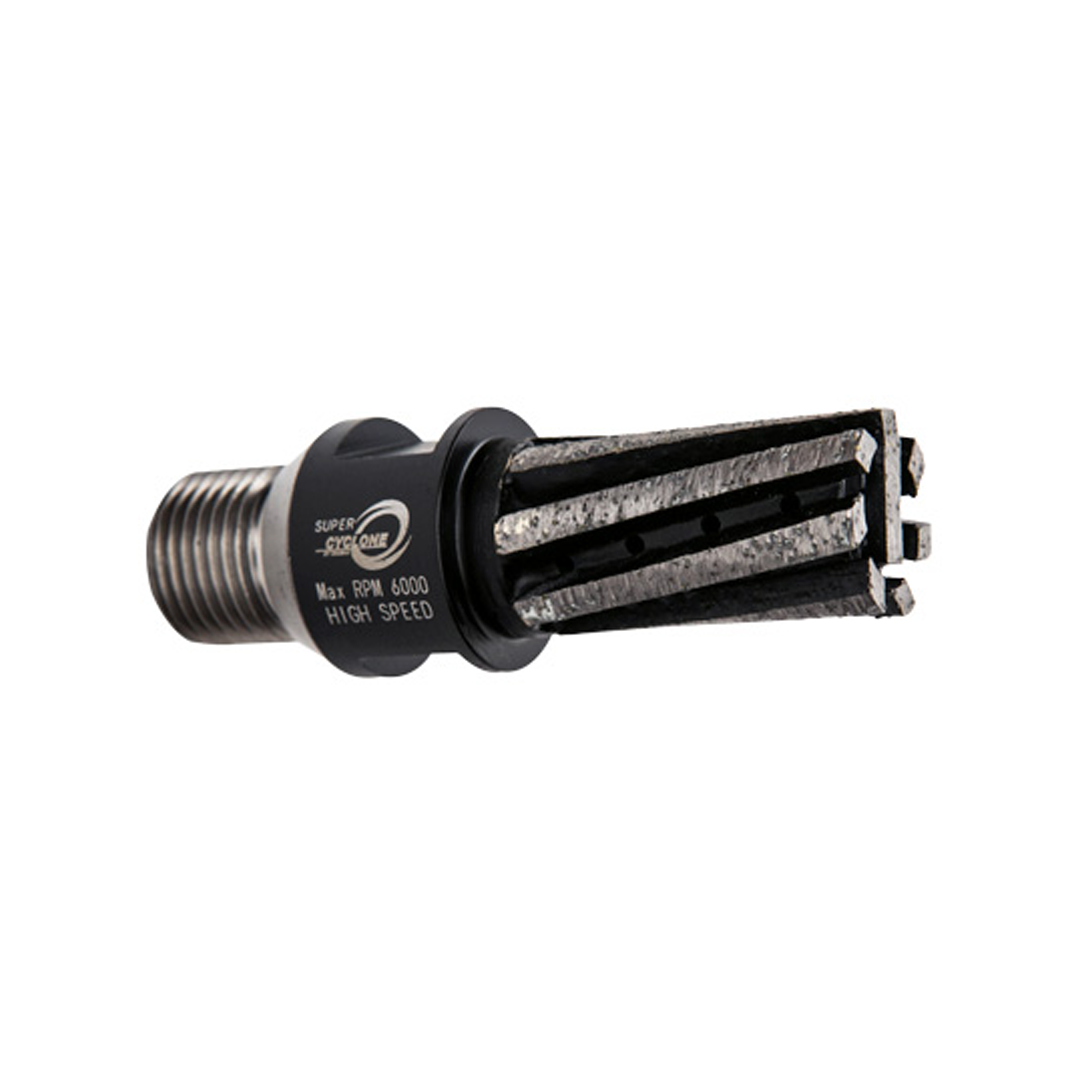

Super Cyclone High-Speed Finger Bits

Super Cyclone High-Speed Finger Bits

Availability

Ships to you

In-store

SKU

FBSHS158

$133.99 USD
$133.99 USD
Sale Sold out
View full details

  • Description

  • Specs & Support

  • Video

Description

  • The New Super Cyclone Seven Segment Finger Bit has a smaller diameter and seven segments designed to cut faster
  • Bottom segment enables drilling into slab like a core bit
  • Ideal for hard materials
  • Parameters:
    • Feed rate : 10″ ~ 20″/min
    • Speed : 4500 – 6000

Tools Can Be Used On

CNC machine

Uses

Wet only

Materials

Engineered stone, granite

Specs & Support

Item # Segment Size Segment Length Segment Count Fitting Max RPM
FBSHS158 1 5/8″ x 22 mm 40 mm 7 w/ bottom segment 1/2 gas male 4,500 – 6,000
FB158TS 1 5/8″ x 22 mm 40 mm 8 (4 twin segments) 1/2 gas male 4,500 – 6,000
FBSHS200 2″ x 22 mm 50 mm 7 w/ bottom segment 1/2 gas male 4,500 – 6,000

Video

  • The New Super Cyclone Seven Segment Finger Bit has a smaller diameter and seven segments designed to cut faster
  • Bottom segment enables drilling into slab like a core bit
  • Ideal for hard materials
  • Parameters:
    • Feed rate : 10″ ~ 20″/min
    • Speed : 4500 – 6000

Tools Can Be Used On

CNC machine

Uses

Wet only

Materials

Engineered stone, granite

Item #FBSHS158
Segment Size1 5/8″ x 22 mm
Segment Length40 mm
Segment Count7 w/ bottom segment
Fitting1/2 gas male
Max RPM4,500 – 6,000
Item #FB158TS
Segment Size1 5/8″ x 22 mm
Segment Length40 mm
Segment Count8 (4 twin segments)
Fitting1/2 gas male
Max RPM4,500 – 6,000
Item #FBSHS200
Segment Size2″ x 22 mm
Segment Length50 mm
Segment Count7 w/ bottom segment
Fitting1/2 gas male
Max RPM4,500 – 6,000
