Diamax

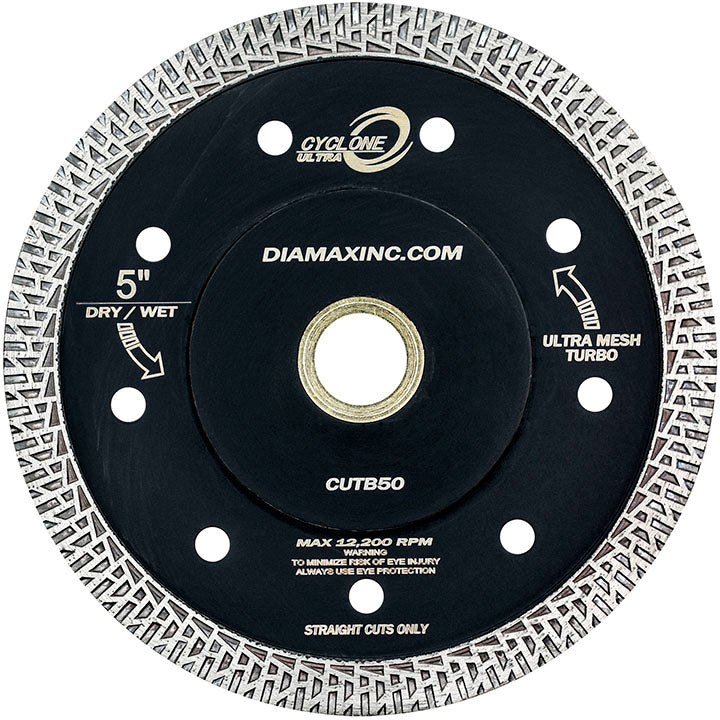

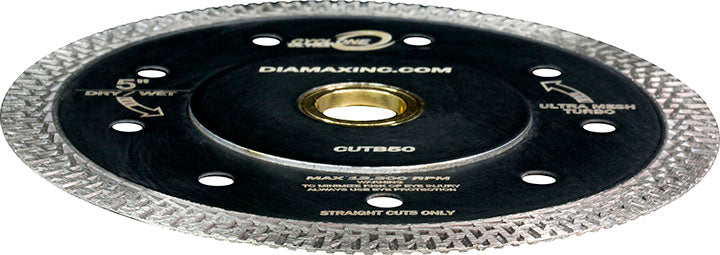

Cyclone Ultra Mesh Turbo Blade

Cyclone Ultra Mesh Turbo Blade

Availability

Ships to you

In-store

SKU

CUTB40

$26.99 USD
$26.99 USD
Sale Sold out
View full details

  • Description

  • Specs & Support

Description

Featuring an ultra-thin rim, optimal cooling, and a reinforced hub for straight cutting, deliver fast, clean cuts on ultra compact surfaces with minimal chipping.

  • New edition to the Cyclone Ultra line-up
  • The Cyclone Ultra Mesh Turbo blade is designed to cut Ultra Compact surfaces at a fast speed with minimal chipping
  • Ultra thin rim assures a fast clean cut
  • Turbo mesh design allows for optimal cooling
  • Center hub reinforcement keeps the blade cutting straight

Tools Can Be Used On

Angle Grinder, Hand Saw

Uses

Wet or dry

Materials

Engineered stone, granite, marble, porcelain, quartzite, ultra-compact

Specs & Support

Item # Size Arbor Bushing # RPM
CUTB40 4 in. 5/8 in. – 7/8 in. – 20 mm BS57820D 13,200
CUTB45 4.5 in. 5/8 in. – 7/8 in. – 20 mm BS57820D 13,200
CUTB50 5 in. 5/8 in. – 7/8 in. – 20 mm BS57820D 12,200
CUTB60 6 in. 5/8 in. – 7/8 in. – 20 mm BS57820D 10,000
CUTB70 7 in. 5/8 in. – DKO BSDK2 8,600
CUTB10 10 in. 5/8 in. – 7/8 in. – 1 in. BS15878D 6,100

Featuring an ultra-thin rim, optimal cooling, and a reinforced hub for straight cutting, deliver fast, clean cuts on ultra compact surfaces with minimal chipping.

  • New edition to the Cyclone Ultra line-up
  • The Cyclone Ultra Mesh Turbo blade is designed to cut Ultra Compact surfaces at a fast speed with minimal chipping
  • Ultra thin rim assures a fast clean cut
  • Turbo mesh design allows for optimal cooling
  • Center hub reinforcement keeps the blade cutting straight

Tools Can Be Used On

Angle Grinder, Hand Saw

Uses

Wet or dry

Materials

Engineered stone, granite, marble, porcelain, quartzite, ultra-compact

Item #CUTB40
Size4 in.
Arbor5/8 in. – 7/8 in. – 20 mm
Bushing #BS57820D
RPM13,200
Item #CUTB45
Size4.5 in.
Arbor5/8 in. – 7/8 in. – 20 mm
Bushing #BS57820D
RPM13,200
Item #CUTB50
Size5 in.
Arbor5/8 in. – 7/8 in. – 20 mm
Bushing #BS57820D
RPM12,200
Item #CUTB60
Size6 in.
Arbor5/8 in. – 7/8 in. – 20 mm
Bushing #BS57820D
RPM10,000
Item #CUTB70
Size7 in.
Arbor5/8 in. – DKO
Bushing #BSDK2
RPM8,600
