Diamax

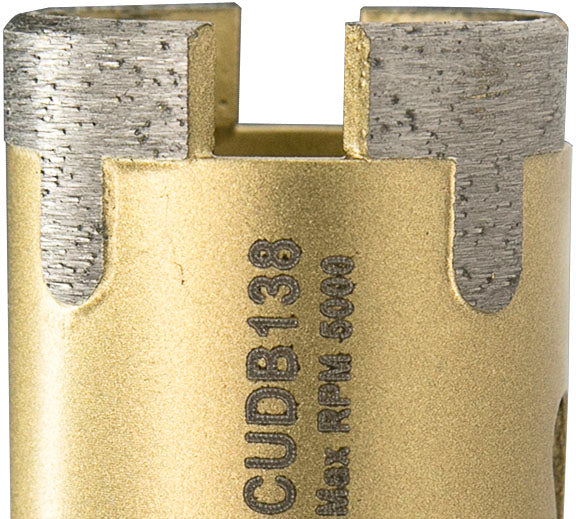

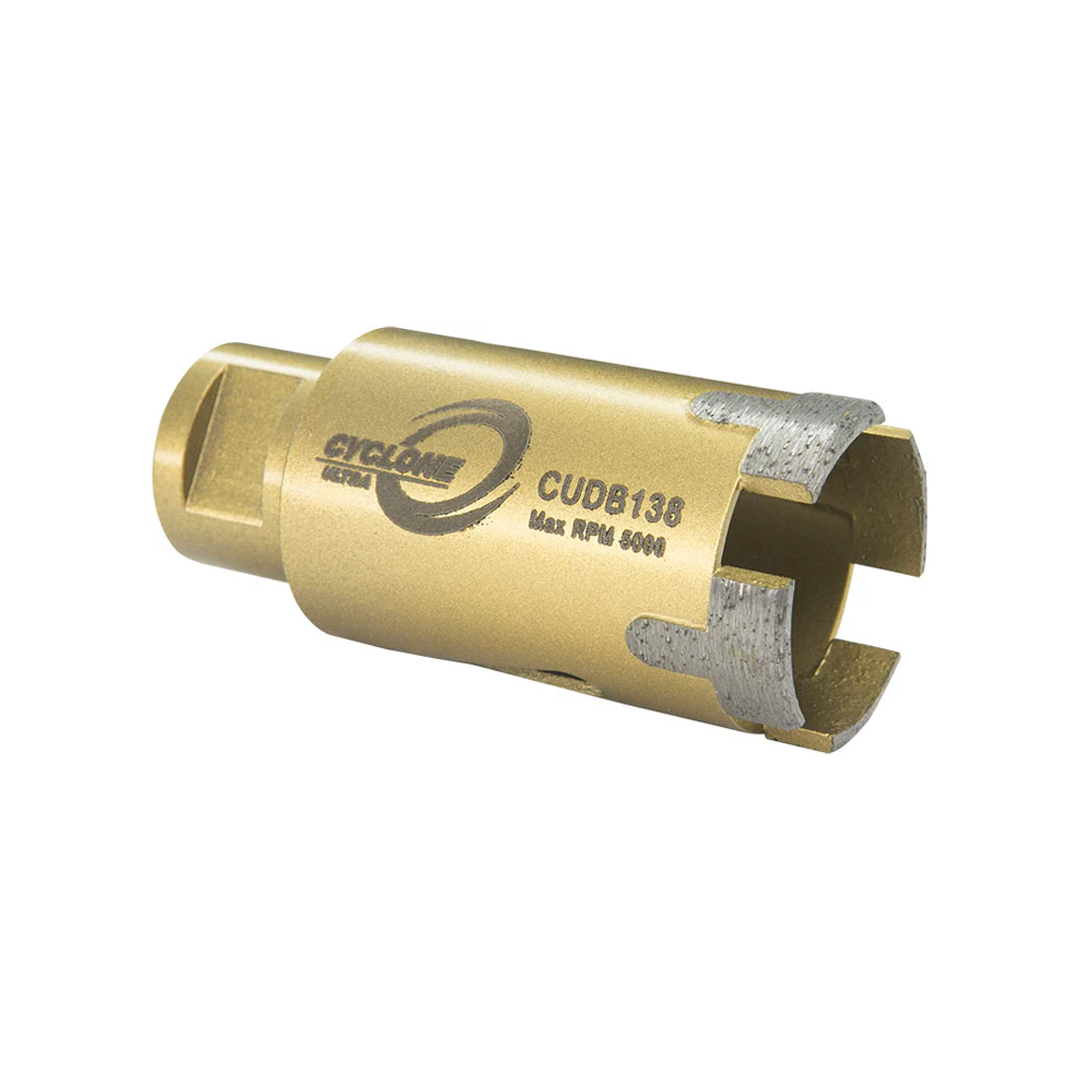

CYCLONE ULTRA CORE BIT

CYCLONE ULTRA CORE BIT

Availability

Ships to you

In-store

SKU

CUDB100

$70.85 USD
$70.85 USD
Sale Sold out
View full details

  • Description

  • Specs & Support

Description

  • Specific grit and bond composition provides a fast clean hole through porcelain and other ultra compact material
  • Featuring thin beveled segments for ease of entry into material
  • Shortened overall length for added control
  • Wet or dry use

Tools Can Be Used On

Angle grinder, pneumatic machine

Uses

Wet or dry

Materials

Engineered stone, granite, marble, porcelain, quartzite, ultra-compact

Specs & Support

ITEM # DIAMETER FITTING USABLE LENGTH MAX RPM
CUDB100 1″  5/8″ – 11 thread 2.25″ 5,000
CUDB114  1 1/4″  5/8″ – 11 thread 2.25″ 5,000
CUDB138  1 3/8″  5/8″ – 11 thread 2.25″ 5,000
CUDB112 1 1/2″  5/8″ – 11 thread 2.25″ 5,000
CUDB134 1 3/4″  5/8″ – 11 thread 2.25″ 5,000
CUDB200 2″ 5/8″ – 11 thread 2.25″ 5,000
CUDB214 2 1/4″ 5/8″ – 11 thread 2.25″ 5,000
CUDB212 2 1/2″ 5/8″ – 11 thread 2.25″ 5,000
CUDB300 3″ 5/8″ – 11 thread 2.25″ 5,000
CUDB312 3 1/2″ 5/8″ – 11 thread 2.25″ 5,000
CUDB400 4″ 5/8″ – 11 thread 2.25″ 5,000

  • Specific grit and bond composition provides a fast clean hole through porcelain and other ultra compact material
  • Featuring thin beveled segments for ease of entry into material
  • Shortened overall length for added control
  • Wet or dry use

Tools Can Be Used On

Angle grinder, pneumatic machine

Uses

Wet or dry

Materials

Engineered stone, granite, marble, porcelain, quartzite, ultra-compact

ITEM #CUDB100
DIAMETER1″
FITTING 5/8″ – 11 thread
USABLE LENGTH2.25″
MAX RPM5,000
ITEM #CUDB114
DIAMETER 1 1/4″
FITTING 5/8″ – 11 thread
USABLE LENGTH2.25″
MAX RPM5,000
ITEM #CUDB138
DIAMETER 1 3/8″
FITTING 5/8″ – 11 thread
USABLE LENGTH2.25″
MAX RPM5,000
ITEM #CUDB112
DIAMETER1 1/2″
FITTING 5/8″ – 11 thread
USABLE LENGTH2.25″
MAX RPM5,000
ITEM #CUDB134
DIAMETER1 3/4″
FITTING 5/8″ – 11 thread
USABLE LENGTH2.25″
MAX RPM5,000
