Diamax

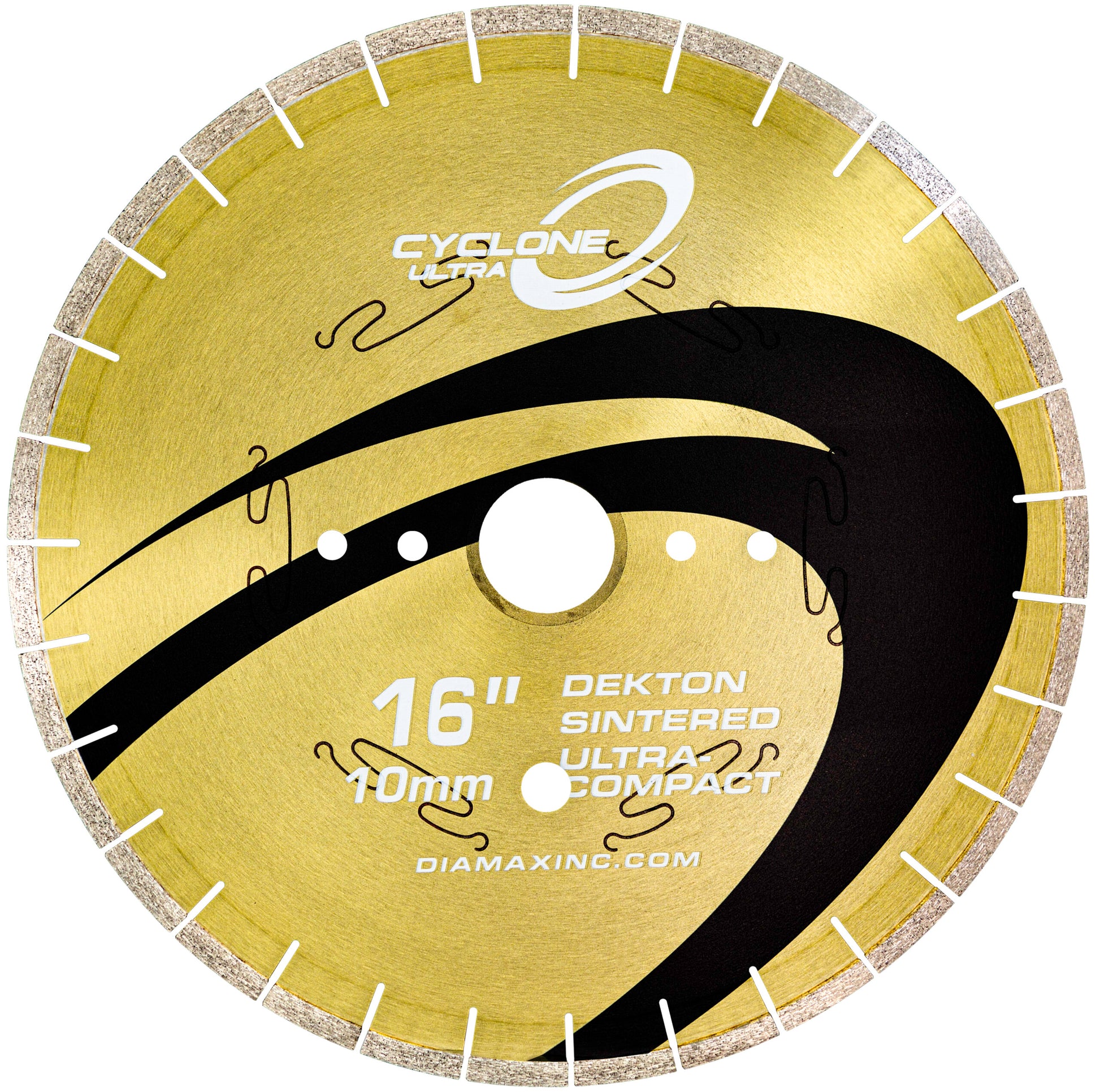

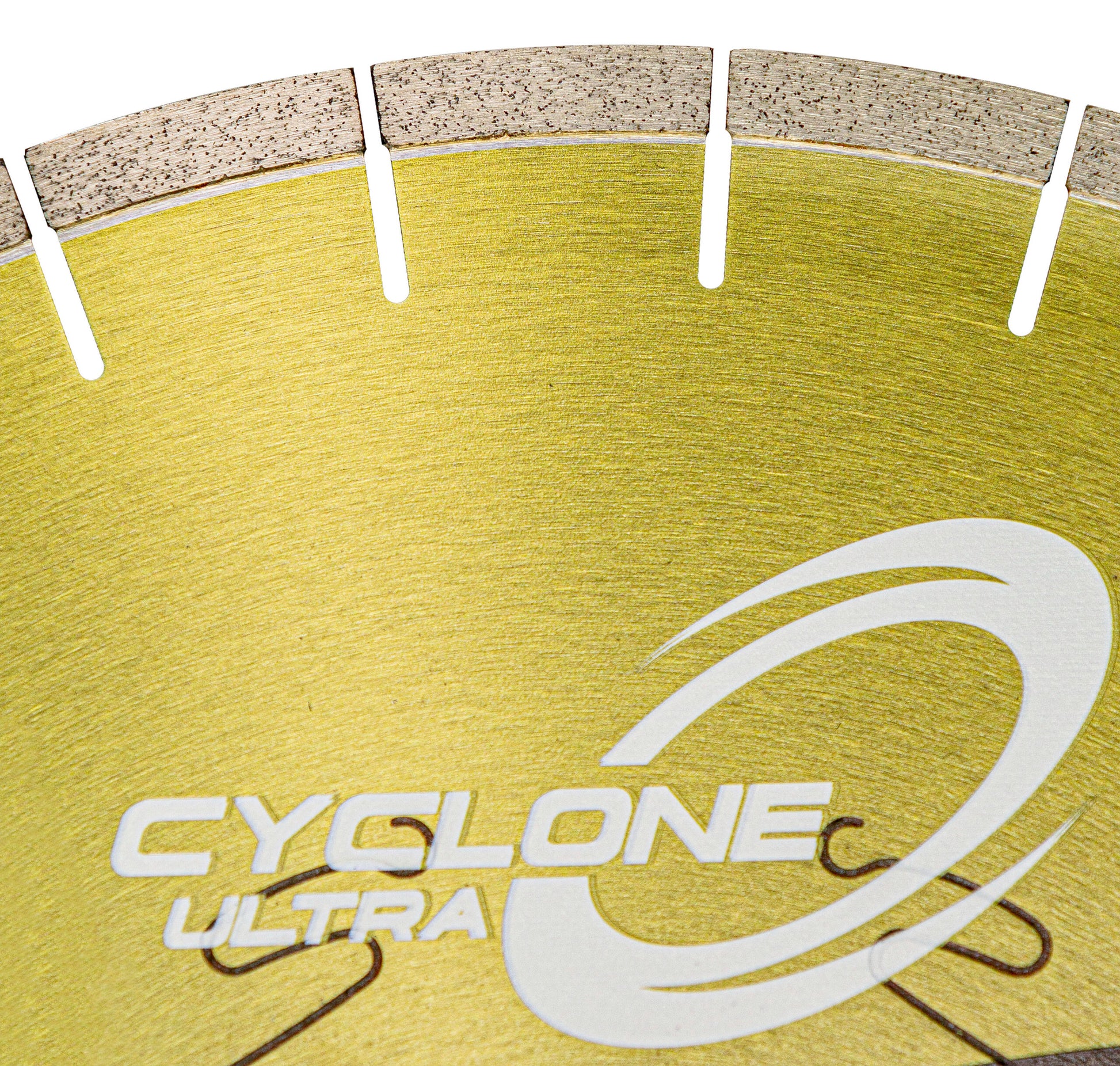

Cyclone Ultra Blade
Cyclone Ultra Blade
Availability
Ships to you
In-store
SKU:
SKU
CUCS14
Regular price
$260.99 USD
Regular price
Sale price
$260.99 USD
Unit price
per
Couldn't load pickup availability
Description
Specs & Support
Specs & Support
| Item # | Size | Arbor | Segment | RPM | Straight Feed Rate | Miter Feed Rate |
|---|---|---|---|---|---|---|
| CUCS14 | 14 in. | 60/50mm | 10mm | 2,000 | 35-70 in. per min | 30-12 in. per min |
| CUCS16 | 16 in. | 60/50mm | 10mm | 2,000 | 35-70 in. per min | 30-12 in. per min |
| CUCS18 | 18 in. | 60/50mm | 10mm | 1,800 | 35-70 in. per min | 30-12 in. per min |
Deliver flawless straight and miter cuts with a silent steel core, non-glazing performance, and minimal upkeep—Dekton-approved for peak efficiency.
- Minimal upkeep; limited dressing
- Excellent finish for straight AND miter cuts
- Silent steel core for noise reduction and cutting efficiency
- Precision factory dressing and diamond bonding for minimal load while cutting
- Donatoni, Denver, & Breton pin holes standard
Tools Can Be Used On
Bridge Saw
Uses
Wet only
Materials
Dekton, Neolith, Techlam, Laminam, Lapitec, all UCS materials, Quartz, Marble, Quartzite
| Item # | CUCS14 |
|---|---|
| Size | 14 in. |
| Arbor | 60/50mm |
| Segment | 10mm |
| RPM | 2,000 |
| Straight Feed Rate | 35-70 in. per min |
| Miter Feed Rate | 30-12 in. per min |
| Item # | CUCS16 |
|---|---|
| Size | 16 in. |
| Arbor | 60/50mm |
| Segment | 10mm |
| RPM | 2,000 |
| Straight Feed Rate | 35-70 in. per min |
| Miter Feed Rate | 30-12 in. per min |
| Item # | CUCS18 |
|---|---|
| Size | 18 in. |
| Arbor | 60/50mm |
| Segment | 10mm |
| RPM | 1,800 |
| Straight Feed Rate | 35-70 in. per min |
| Miter Feed Rate | 30-12 in. per min |
