Diamax

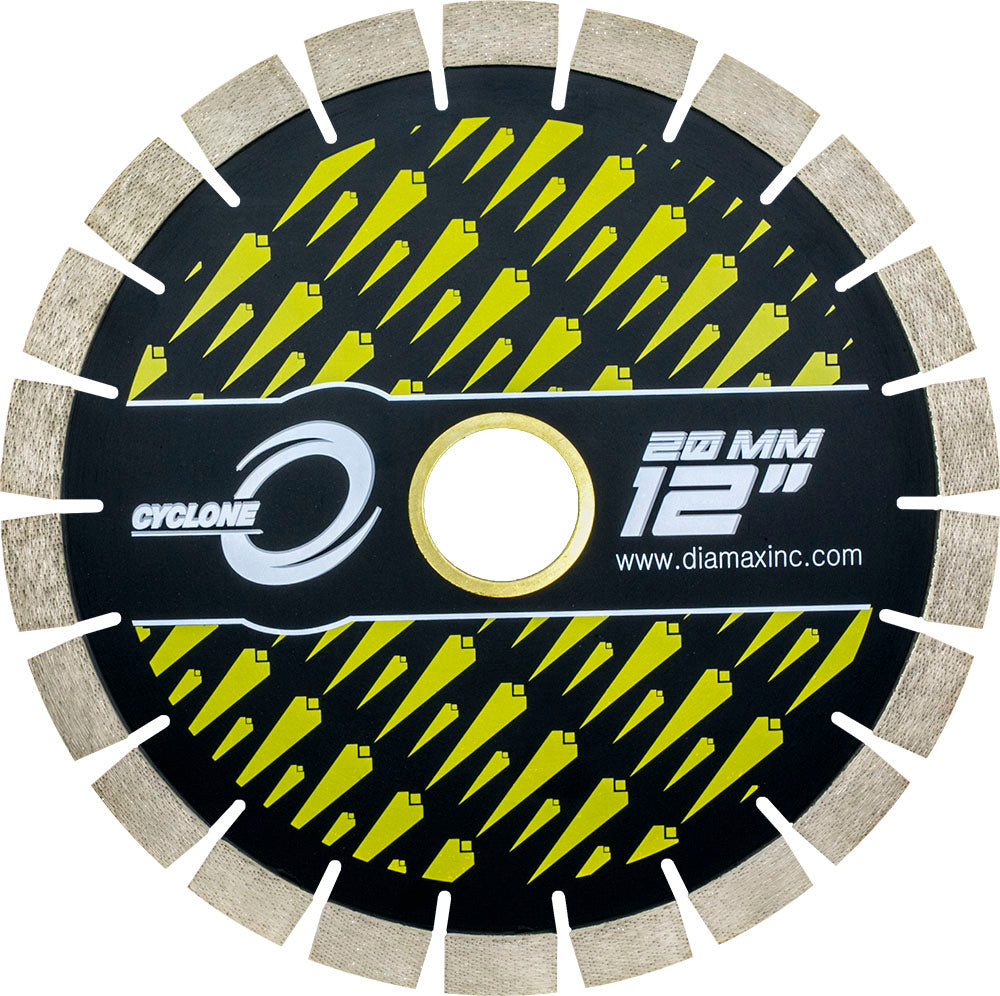

Cyclone Silent Core Blade

Cyclone Silent Core Blade

Availability

Ships to you

In-store

SKU

SCDA1220

$309.99 USD
$309.99 USD
Sale Sold out
View full details

  • Description

  • Specs & Support

  • Video

Description

Pressure-tested segments ensure solid welding, while high-speed patterned technology delivers fast cutting with a feed rate of 10-17 feet per minute.

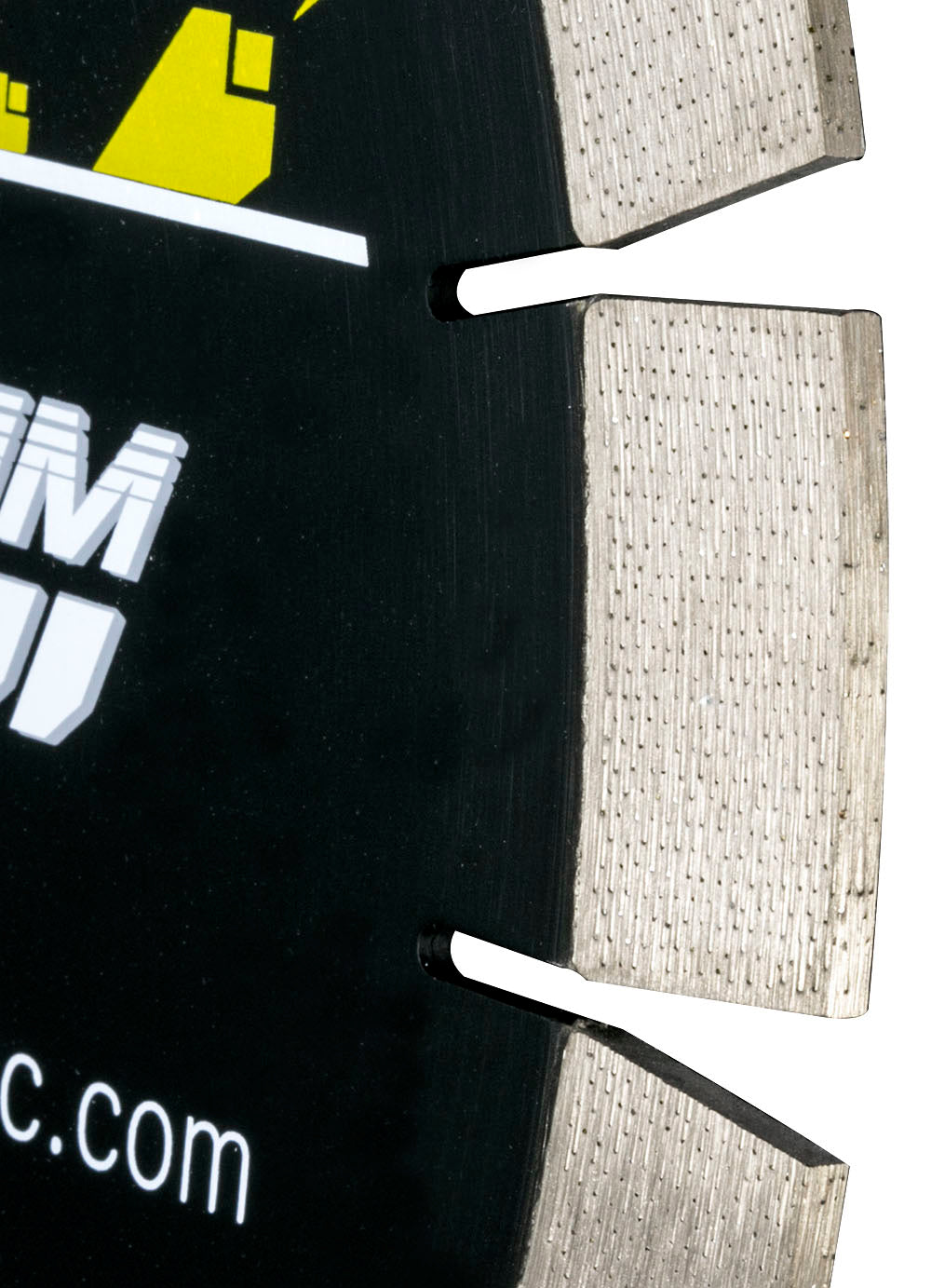

  • Segments are pressure tested to ensure solid welding
  • Cyclone high-speed patterned technology provides fast cutting
  • Feed rate: 10 ft – 17 ft a minute

Tools Can Be Used On

Bridge Saw

Uses

Wet only

Materials

Engineered stone, granite, marble

Specs & Support

Item # Diameter Segment Arbor Bushing # Max RPM
SCDA1220 12 in. 20mm 50/60mm BSH50601 1,600 – 1,800
SCDA1420 14 in. 20mm 50/60mm BSH50601 1,400 – 1,600
SCDA1426 14 in. 26mm 50/60mm BSH50601 1,400 – 1,600
SCDA1620 16 in. 20mm 50/60mm BSH50601 1,200 – 1,400
SCDA1626 16 in. 26mm 50/60mm BSH50601 1,200 – 1,400
SCDA1690 16 in. 26mm 90mm NA 1,200 – 1,400
SCDA1826 18 in. 26mm 50/60mm BSH50601 1,000 – 1,200

Video

Pressure-tested segments ensure solid welding, while high-speed patterned technology delivers fast cutting with a feed rate of 10-17 feet per minute.

  • Segments are pressure tested to ensure solid welding
  • Cyclone high-speed patterned technology provides fast cutting
  • Feed rate: 10 ft – 17 ft a minute

Tools Can Be Used On

Bridge Saw

Uses

Wet only

Materials

Engineered stone, granite, marble

Item #SCDA1220
Diameter12 in.
Segment20mm
Arbor50/60mm
Bushing #BSH50601
Max RPM1,600 – 1,800
Item #SCDA1420
Diameter14 in.
Segment20mm
Arbor50/60mm
Bushing #BSH50601
Max RPM1,400 – 1,600
Item #SCDA1426
Diameter14 in.
Segment26mm
Arbor50/60mm
Bushing #BSH50601
Max RPM1,400 – 1,600
Item #SCDA1620
Diameter16 in.
Segment20mm
Arbor50/60mm
Bushing #BSH50601
Max RPM1,200 – 1,400
Item #SCDA1626
Diameter16 in.
Segment26mm
Arbor50/60mm
Bushing #BSH50601
Max RPM1,200 – 1,400
Item #SCDA1690
Diameter16 in.
Segment26mm
Arbor90mm
Bushing #NA
Max RPM1,200 – 1,400
