Diamax

Cyclone Porcelain Turbo Blade

Cyclone Porcelain Turbo Blade

Availability

Ships to you

In-store

SKU

TBP35

$29.32 USD
$29.32 USD
Sale Sold out
View full details

  • Description

  • Specs & Support

  • Video

Description

Deliver cooler, faster cuts with an enhanced mesh turbo rim and advanced diamond bond.

  • The new mesh turbo rim minimizes heat caused by friction
  • Cooler rim temperatures increase life and speed of your cut
  • New diamond bond makes this the best continuous rim ever
  • 60 mm to 1″ Arbor reducer bushings available for larger blades

Tools Can Be Used On

Angle Grinder, Hand Saw

Uses

Wet or dry

Materials

Porcelain, ultra-compact

Specs & Support

Item # Size Arbor Bushing # Max RPM

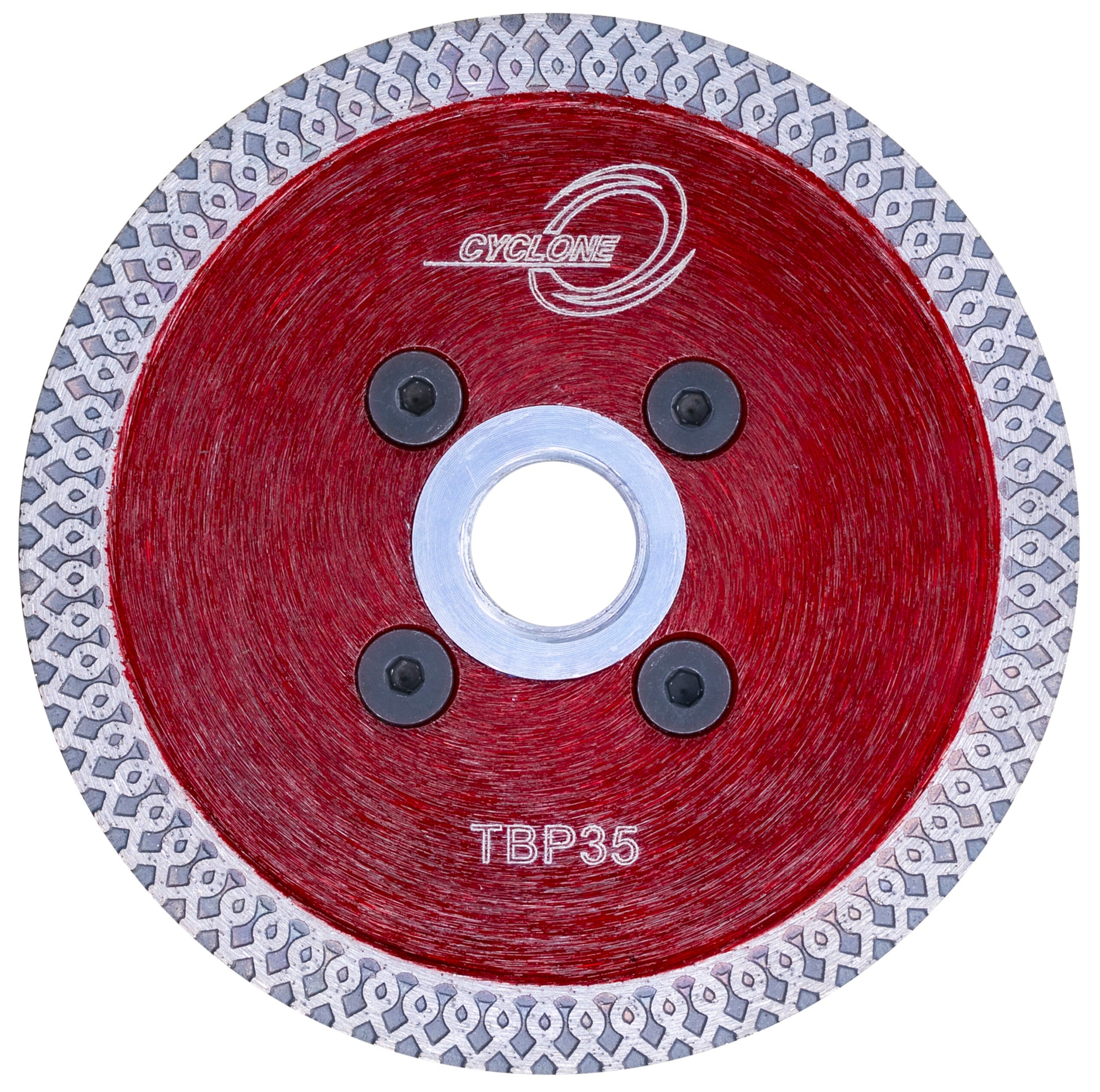

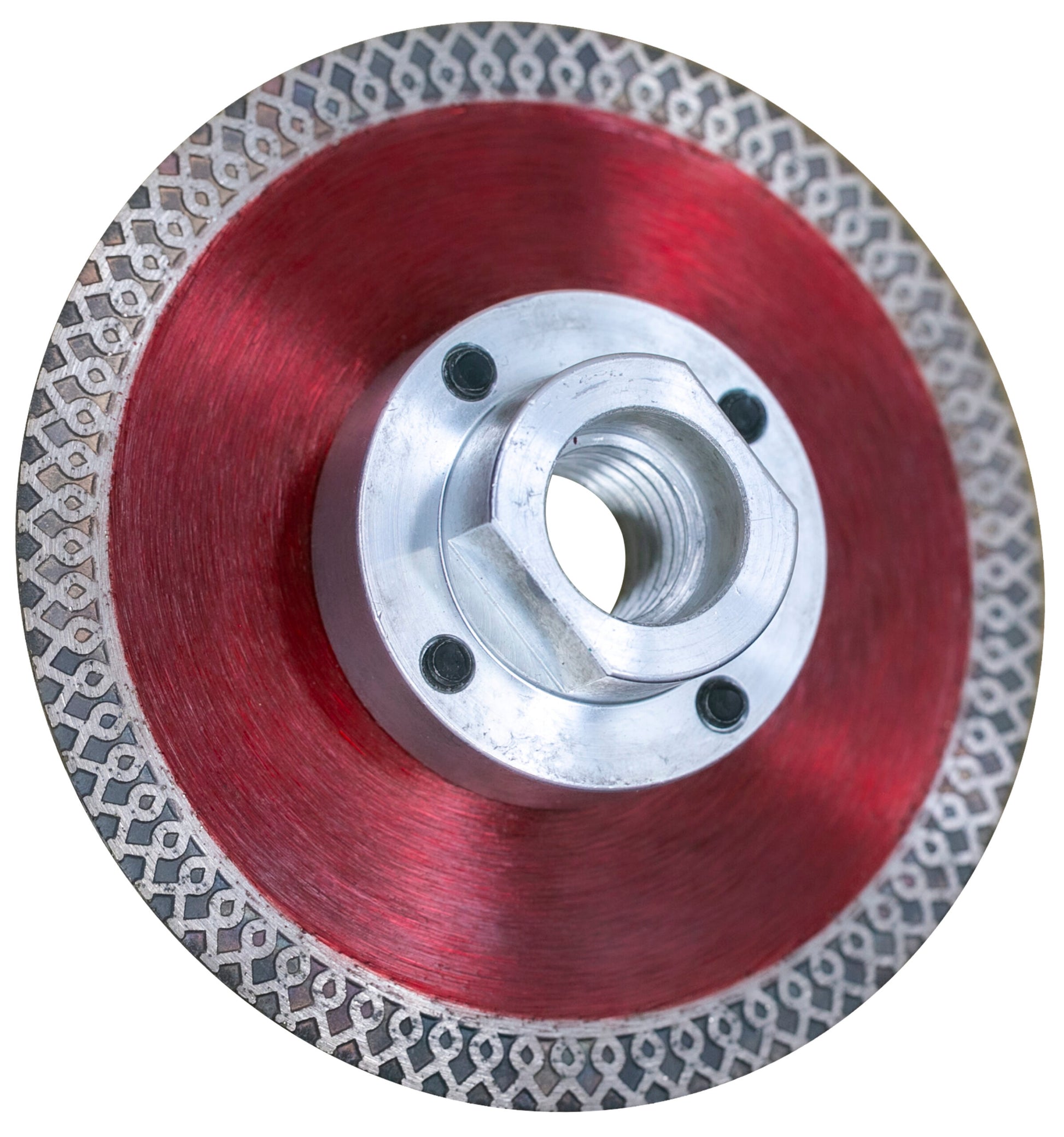

TBP35 3.5 in. 5/8 in. – 7/8 in. – 20 mm BS57820D 14,000
TBP40 4 in. 5/8 in. – 7/8 in. – 20 mm BS57820D 13,200

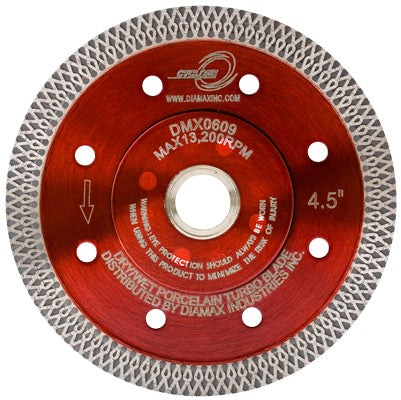

TBP45 4.5 in. 5/8 in. – 7/8 in. – 20 mm BS57820D 13,200
TBP50 5 in. 5/8 in. – 7/8 in. – 20 mm BS57820D 12,200
TBP60 6 in. 5/8 in. – 7/8 in. – 20 mm BS57820D 10,000
TBP70 7 in. 5/8 in. + DKO BSDK2 8,600
TBP7Q 7 in. 5/8 in. – 7/8 in. – 20 mm BS57820D 8,600

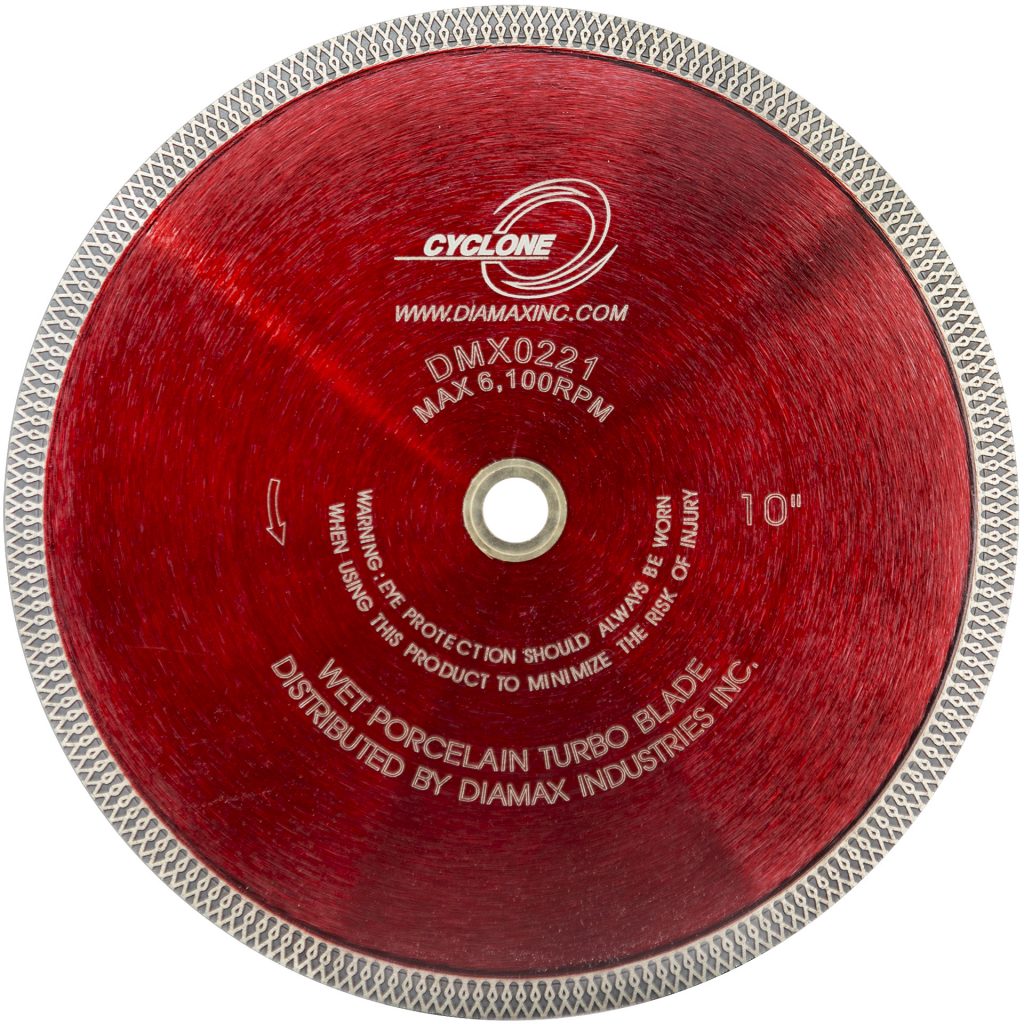

TBP100 10 in. 1 in. – 7/8 in. – 5/8 in. BS57820D 6,100

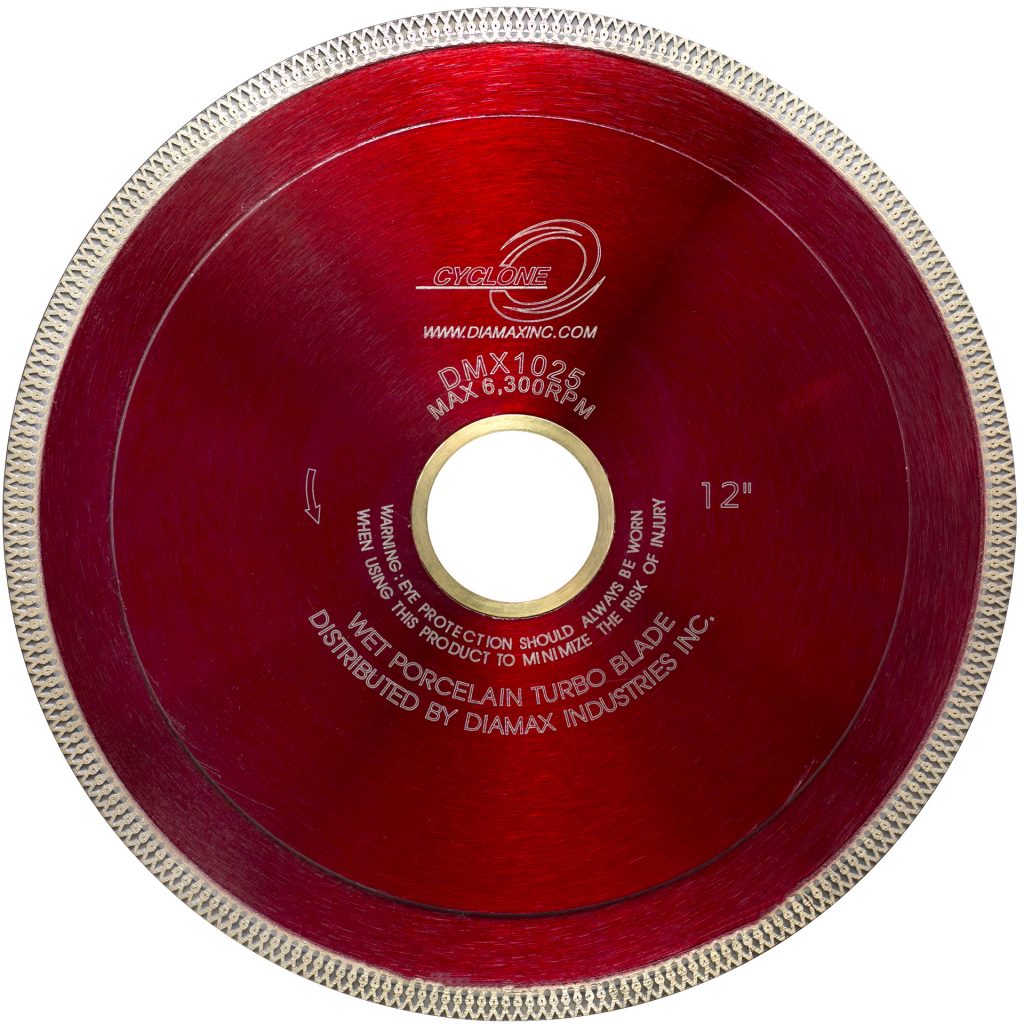

TBP1260 12 in. 60mm BS57820D 6,300
TBP1460 14 in. 50/60mm BS57820D 5,400

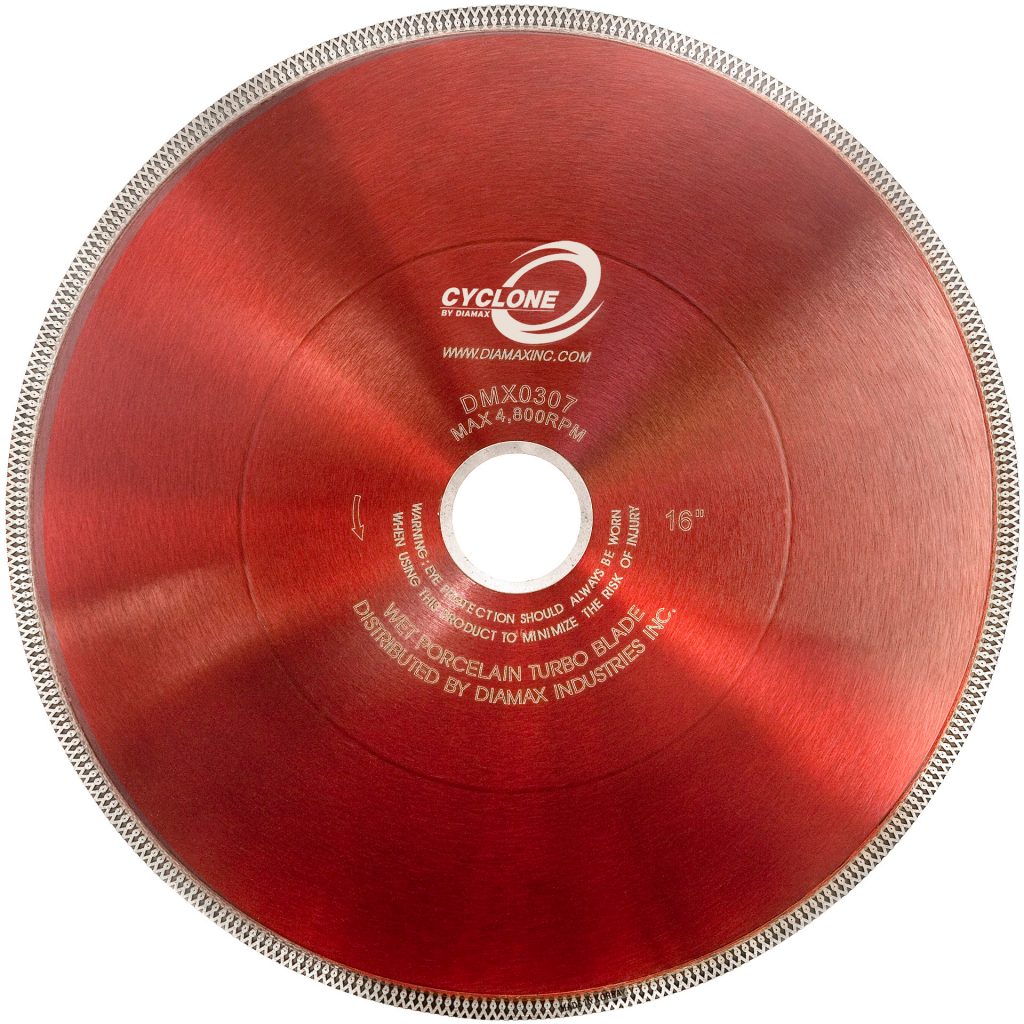

TBP1660 16 in. 50/60mm BS57820D 4,800

Video

Deliver cooler, faster cuts with an enhanced mesh turbo rim and advanced diamond bond.

  • The new mesh turbo rim minimizes heat caused by friction
  • Cooler rim temperatures increase life and speed of your cut
  • New diamond bond makes this the best continuous rim ever
  • 60 mm to 1″ Arbor reducer bushings available for larger blades

Tools Can Be Used On

Angle Grinder, Hand Saw

Uses

Wet or dry

Materials

Porcelain, ultra-compact

Item #TBP35
Size3.5 in.
Arbor5/8 in. – 7/8 in. – 20 mm
Bushing #BS57820D
Max RPM14,000
Item #TBP40
Size4 in.
Arbor5/8 in. – 7/8 in. – 20 mm
Bushing #BS57820D
Max RPM13,200
Item #TBP45
Size4.5 in.
Arbor5/8 in. – 7/8 in. – 20 mm
Bushing #BS57820D
Max RPM13,200
Item #TBP50
Size5 in.
Arbor5/8 in. – 7/8 in. – 20 mm
Bushing #BS57820D
Max RPM12,200
Item #TBP60
Size6 in.
Arbor5/8 in. – 7/8 in. – 20 mm
Bushing #BS57820D
Max RPM10,000
