Diamax

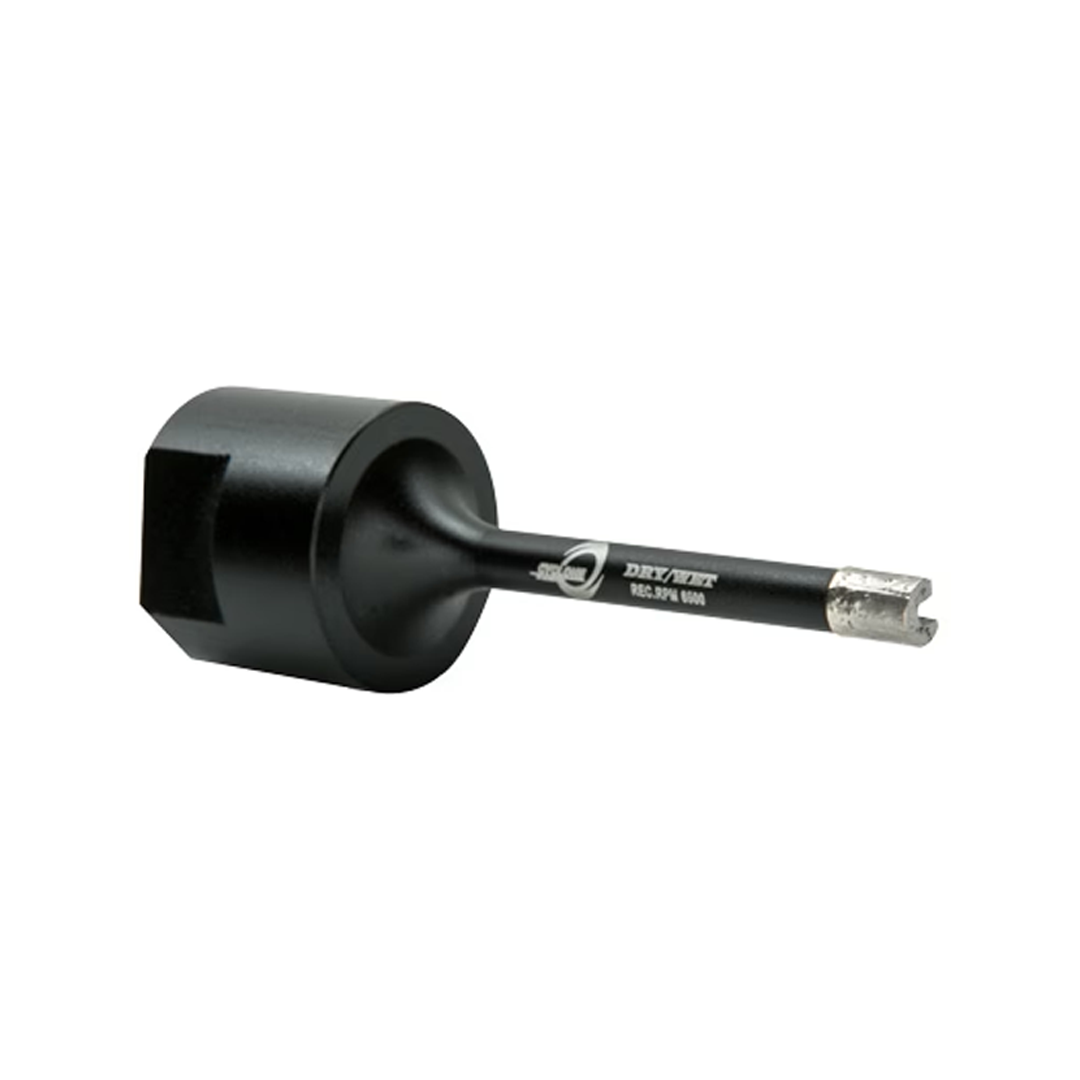

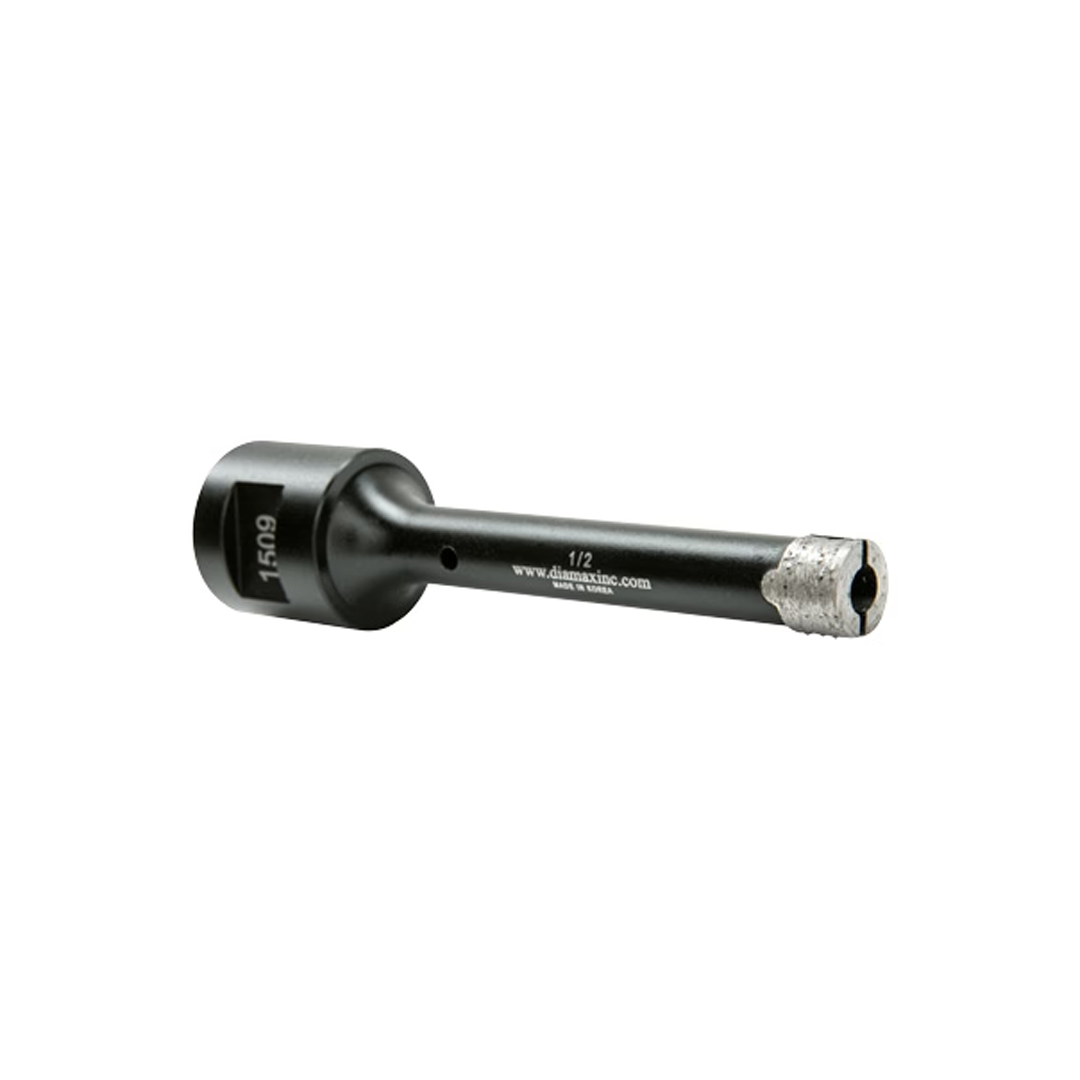

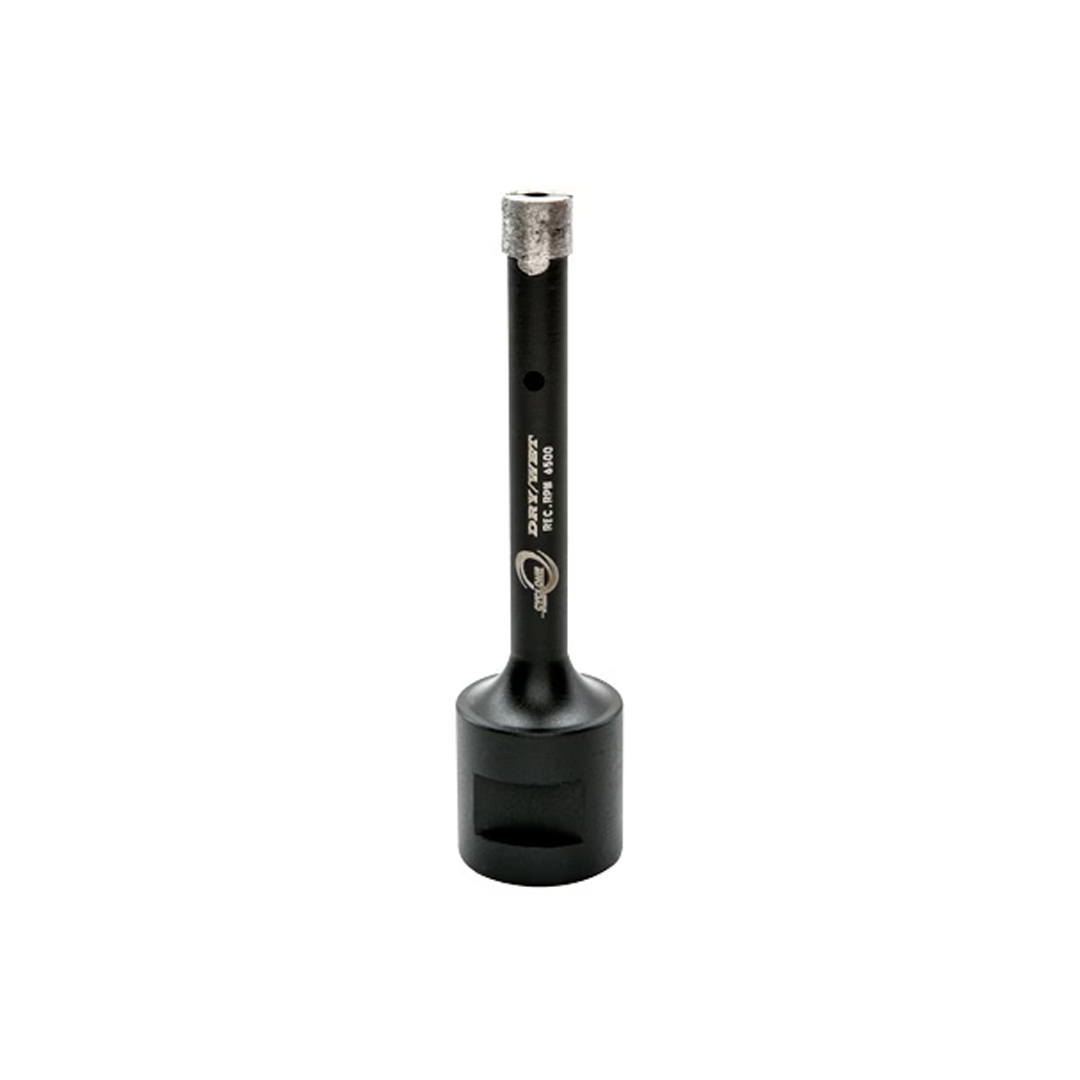

CYCLONE NON CORE BIT

CYCLONE NON CORE BIT

Availability

Ships to you

In-store

SKU

CDBYNC316

$46.99 USD
$46.99 USD
Sale Sold out
View full details

  • Description

  • Specs & Support

  • Video

Description

  • New dry segment matrix allows these non-core drill bits to perform under high heat conditions
  • For best performance use at 6,500 RPM with center-fed water
  • 5/8″ – 11 thread

Tools Can Be Used On

Angle grinder, drill, air polisher

Uses

Wet or dry

Materials

Engineered stone, granite, marble

Specs & Support

ITEM # SIZE FITTING USABLE LENGTH MAX RPM WET MAX RPM DRY
CDBYNC316 3/16″ 5/8″ – 11 thread 2″ 6,500 2,000
CDBYNC516 5/16″ 5/8″ – 11 thread 2″ 6,500 2,000
CDBYNC14 1/4″ 5/8″ – 11 thread 2″ 6,500 2,000
CDBYNC38 3/8″ 5/8″ – 11 thread 2″ 6,500 6,000
CDBY12 1/2″ 5/8″ – 11 thread   2.75″ 8,000 6,000
CDBY58 5/8″ 5/8″ – 11 thread 2.75″ 8,000 6,000
CDBY34 3/4 5/8″ – 11 thread 2.75″ 8,000 6,000

Video

  • New dry segment matrix allows these non-core drill bits to perform under high heat conditions
  • For best performance use at 6,500 RPM with center-fed water
  • 5/8″ – 11 thread

Tools Can Be Used On

Angle grinder, drill, air polisher

Uses

Wet or dry

Materials

Engineered stone, granite, marble

ITEM #CDBYNC316
SIZE3/16″
FITTING5/8″ – 11 thread
USABLE LENGTH2″
MAX RPM WET6,500
MAX RPM DRY2,000
ITEM #CDBYNC516
SIZE5/16″
FITTING5/8″ – 11 thread
USABLE LENGTH2″
MAX RPM WET6,500
MAX RPM DRY2,000
ITEM #CDBYNC14
SIZE1/4″
FITTING5/8″ – 11 thread
USABLE LENGTH2″
MAX RPM WET6,500
MAX RPM DRY2,000
ITEM #CDBYNC38
SIZE3/8″
FITTING5/8″ – 11 thread
USABLE LENGTH2″
MAX RPM WET6,500
MAX RPM DRY6,000
ITEM #CDBY12
SIZE1/2″
FITTING5/8″ – 11 thread
USABLE LENGTH  2.75″
MAX RPM WET8,000
MAX RPM DRY6,000
ITEM #CDBY58
SIZE5/8″
FITTING5/8″ – 11 thread
USABLE LENGTH2.75″
MAX RPM WET8,000
MAX RPM DRY6,000
