Diamax

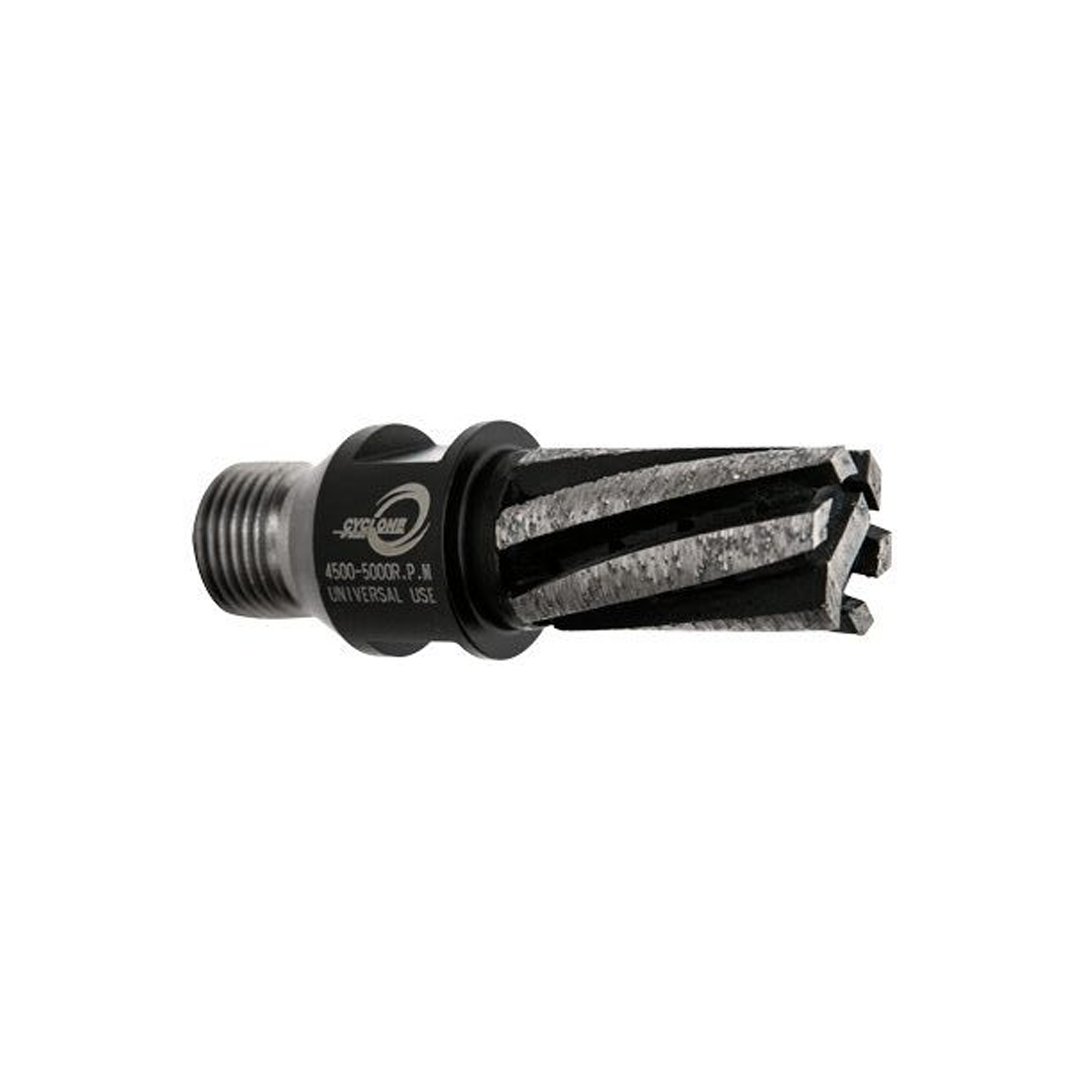

Cyclone Finger Bits

Cyclone Finger Bits

Availability

Ships to you

In-store

SKU

FB158

$111.99 USD
$111.99 USD
Sale Sold out
View full details

  • Description

  • Specs & Support

Description

  • Available in 1 5/8” and 2 1/2” for different granite thickness
  • Bottom segment gives the CNC operator the option of drilling into the slab like a core bit
  • The 6 segment finger bit has the first ever reverse apple core design – thicker in the middle
  • Parameters for FB158
    • Feed rate : 8″ ~ 12″/min
    • Speed : 4500 – 5500

Tools Can Be Used On

CNC machine

Uses

Wet only

Materials

Engineered stone, granite, marble

Specs & Support

Item# Segment Size Segment Length Segment Count Fitting Max RPM
FB158 1 5/8″ x 22 mm 40 mm 6 w/ bottom 1/2 gas male 4,500 – 5,000
FBRT158 1 5/8″ x 22 mm 40 mm 7 w/ bottom 1/2 gas male 4,500 – 5,000
FB1212 2 1/2″ x 22 mm 65 mm 6 w/ bottom 1/2 gas male 4,500 – 5,000

  • Available in 1 5/8” and 2 1/2” for different granite thickness
  • Bottom segment gives the CNC operator the option of drilling into the slab like a core bit
  • The 6 segment finger bit has the first ever reverse apple core design – thicker in the middle
  • Parameters for FB158
    • Feed rate : 8″ ~ 12″/min
    • Speed : 4500 – 5500

Tools Can Be Used On

CNC machine

Uses

Wet only

Materials

Engineered stone, granite, marble

Item#FB158
Segment Size1 5/8″ x 22 mm
Segment Length40 mm
Segment Count6 w/ bottom
Fitting1/2 gas male
Max RPM4,500 – 5,000
Item#FBRT158
Segment Size1 5/8″ x 22 mm
Segment Length40 mm
Segment Count7 w/ bottom
Fitting1/2 gas male
Max RPM4,500 – 5,000
Item#FB1212
Segment Size2 1/2″ x 22 mm
Segment Length65 mm
Segment Count6 w/ bottom
Fitting1/2 gas male
Max RPM4,500 – 5,000
