Diamax

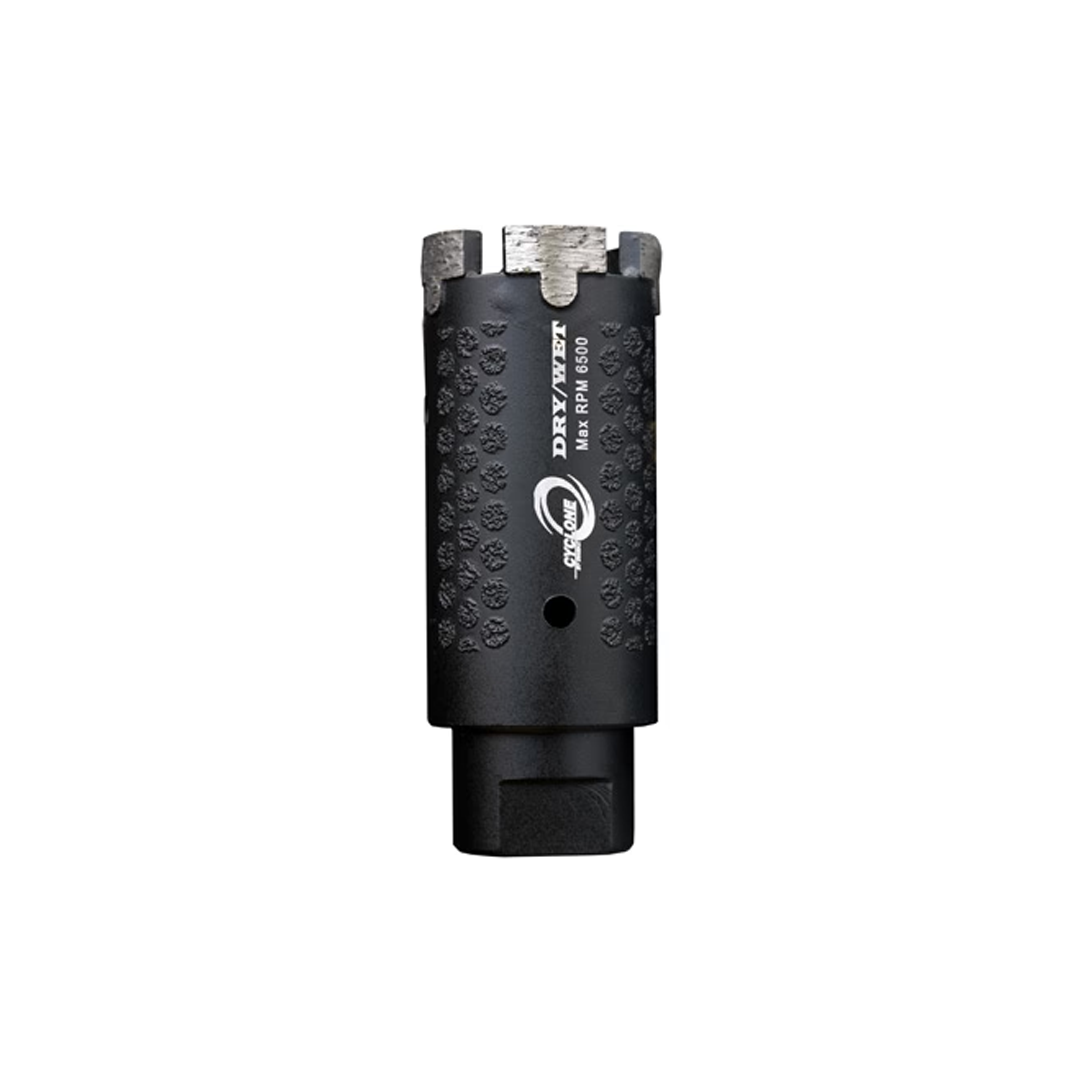

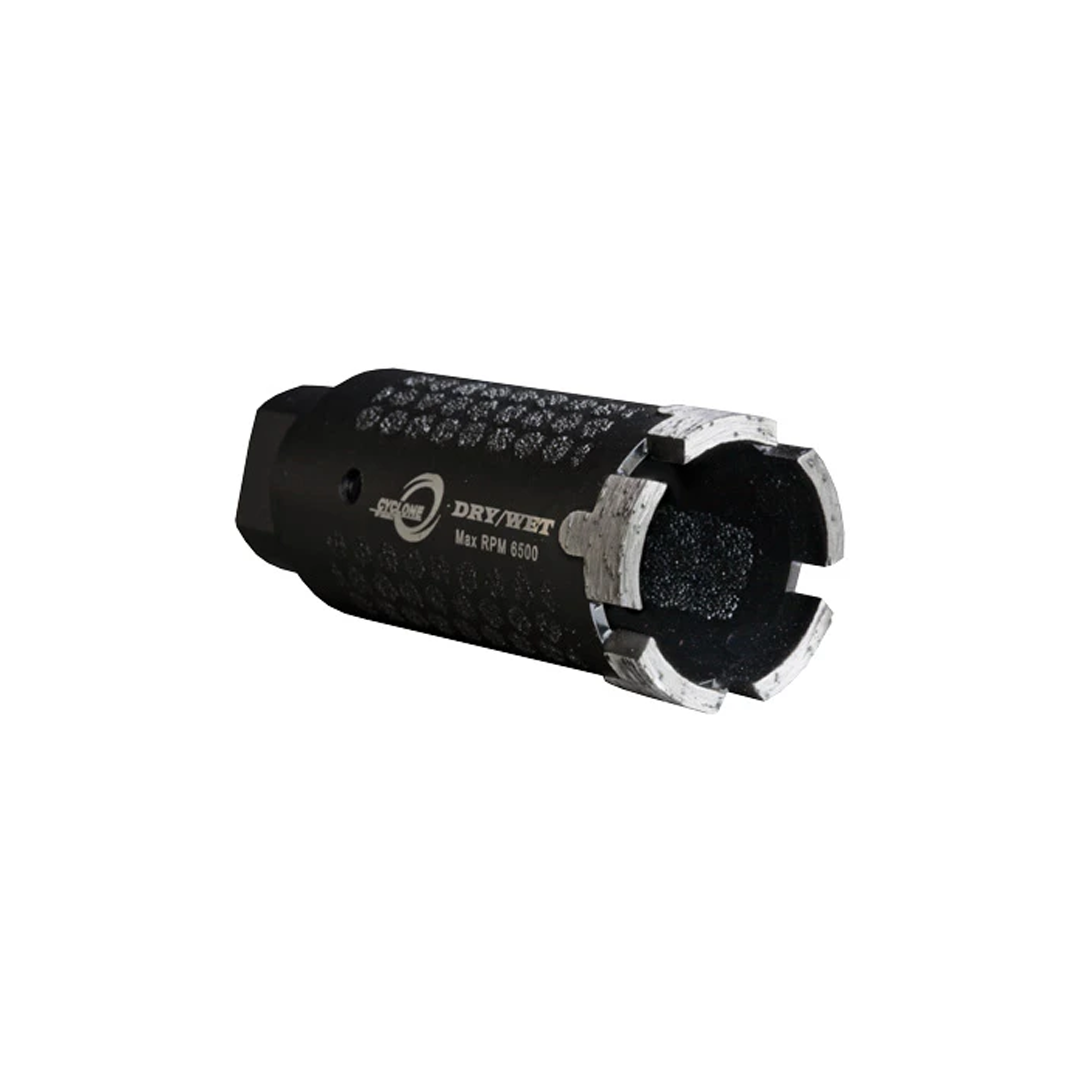

CYCLONE DRY WET SIDE PROTECTION CORE BIT

CYCLONE DRY WET SIDE PROTECTION CORE BIT

Availability

Ships to you

In-store

SKU

CDBYTSD100

$70.99 USD
$70.99 USD
Sale Sold out
View full details

  • Description

  • Specs & Support

  • Video

Description

  • An upgrade from our regular T-segment with diamond side protection on outside and inside shaft for ease of drilling and core release
  • Perfect for use in the field when water is not an option
  • Use water to prolong the segment life
  • 5/8″ – 11 thread

Tools Can Be Used On

Angle grinder, drill, air polisher

Uses

Wet or dry

Materials

Engineered stone, granite

Specs & Support

ITEM # SIZE FITTING USABLE LENGTH RPM HAND TOOL - STONE HARD / SOFT RPM DRILL PRESS - STONE HARD / SOFT
CDBYTSD100 1″ 5/8″ – 11 thread 3″ 3,200 / 6,500 2,000 / 3,200
CDBYTSD114 1 1/4″ 5/8″ – 11 thread 3″ 4,800 / 6,500 2,000 / 3,200
CDBYTSD138 1 3/8″ 5/8″ – 11 thread 3″ 4,800 / 6,500 2,000 / 3,200
CDBYTSD112 1 1/2″ 5/8″ – 11 thread 3″ 4,800 / 6,500 2,000 / 3,200
CDBYTSD158 1 5/8″ 5/8″ – 11 thread 3″ 4,800 / 6,500 2,000 / 3,200
CDBYTSD134 1 3/4″ 5/8″ – 11 thread 3″ 4,500 / 5,300 2,200 / 2,700
CDBYTSD200 2″ 5/8″ – 11 thread 3″ 4,500 / 5,300 2,200 / 2,700

Video

  • An upgrade from our regular T-segment with diamond side protection on outside and inside shaft for ease of drilling and core release
  • Perfect for use in the field when water is not an option
  • Use water to prolong the segment life
  • 5/8″ – 11 thread

Tools Can Be Used On

Angle grinder, drill, air polisher

Uses

Wet or dry

Materials

Engineered stone, granite

ITEM #CDBYTSD100
SIZE1″
FITTING5/8″ – 11 thread
USABLE LENGTH3″
RPM HAND TOOL - STONE HARD / SOFT3,200 / 6,500
RPM DRILL PRESS - STONE HARD / SOFT2,000 / 3,200
ITEM #CDBYTSD114
SIZE1 1/4″
FITTING5/8″ – 11 thread
USABLE LENGTH3″
RPM HAND TOOL - STONE HARD / SOFT4,800 / 6,500
RPM DRILL PRESS - STONE HARD / SOFT2,000 / 3,200
ITEM #CDBYTSD138
SIZE1 3/8″
FITTING5/8″ – 11 thread
USABLE LENGTH3″
RPM HAND TOOL - STONE HARD / SOFT4,800 / 6,500
RPM DRILL PRESS - STONE HARD / SOFT2,000 / 3,200
ITEM #CDBYTSD112
SIZE1 1/2″
FITTING5/8″ – 11 thread
USABLE LENGTH3″
RPM HAND TOOL - STONE HARD / SOFT4,800 / 6,500
RPM DRILL PRESS - STONE HARD / SOFT2,000 / 3,200
ITEM #CDBYTSD158
SIZE1 5/8″
FITTING5/8″ – 11 thread
USABLE LENGTH3″
RPM HAND TOOL - STONE HARD / SOFT4,800 / 6,500
RPM DRILL PRESS - STONE HARD / SOFT2,000 / 3,200
ITEM #CDBYTSD134
SIZE1 3/4″
FITTING5/8″ – 11 thread
USABLE LENGTH3″
RPM HAND TOOL - STONE HARD / SOFT4,500 / 5,300
RPM DRILL PRESS - STONE HARD / SOFT2,200 / 2,700
